From version 4.0 of the IV Installer, nginx reverse proxy is included in the installer.

This document covers manual installation, for use with older versions of the installer.

Background

From Intelligent Voice version 6.0, two different sets of certificates are used:

1. internal communication between containers relies on certificates signed by an internal CA created by the IV installer, with domain names *.intelligentvoice.ivlocal

2. External communication, such as when users connect to the JumpToWeb web application, or when external applications connect to the IV API, uses a different certificate, which can be one of:

   1. A self-signed certificate generated by the IV installer

   2. A certificate file selected at installation time, such as one issued by a corporate or public CA

   3. A certificate issued by LetsEncrypt, which the installer requests using DNS or HTTP authentication

Before starting

Acquire the certificate and key from your CA in pem file format.

Configure your DNS so that the hostname shown on the certificate resolves to your IV server.

Steps to set up nginx container as reverse proxy

This can be done on the same server as the IV API and JumpToWeb, or a different server. If using a different server, note the different hostnames required for nginx.conf.

1. Change jumptoweb listening port from 443 to 2443
   Edit config file /opt/intelligent-voice/docker-compose.jumptoweb.yml:

       ports:
         - "80:80"
         - "2443:443"

2. Put the trusted server certificate and server key to a location, for example /opt/jumpto/ssl.

3. Create nginx configuration file (eg. /opt/intelligent-voice/data/nginx/nginx.conf) which stores the configuration for proxy redirect. Parameters need to change:

   • <hostname> (this should match the hostname on the certificate)

   • <hostname-of-jumptoweb> (can be same server or different server)

   • <hostname-of-vrx-servlet> (can be same server or different server)

   • Location of the server cert/key files inside the container

   • Sample content:

     events {
         worker_connections 1024;
     }

     http {
         server {
             listen 80;
             server_name <hostname>;

             location / {
                 return 301 https://$host$request_uri;
             }
         }

         server {
             listen 443 ssl http2;
             server_name <hostname>;

             client_max_body_size 5000M;

             ssl_certificate /opt/jumpto/ssl/server-cert.pem;
             ssl_certificate_key /opt/jumpto/ssl/server-key.pem;

             ssl_session_timeout 1d;
             ssl_session_cache shared:MozSSL:10m;  # about 40000 sessions
             ssl_session_tickets off;


             # intermediate configuration
             ssl_protocols TLSv1.2 TLSv1.3;
             ssl_ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:DHE-RSA-CHACHA20-POLY1305;
             ssl_prefer_server_ciphers off;

             location / {
                 proxy_pass https://<hostname-of-jumptoweb>:2443;
                 proxy_set_header Host $http_host;
                 proxy_set_header X-Real-IP $remote_addr;
             }

             location /vrxServlet {
                 proxy_pass https://<hostname-of-vrx-servlet>:8443;
                 proxy_set_header Host $http_host;
                 proxy_set_header X-Real-IP $remote_addr;
             }

             location /JumpToWeb {
                 proxy_pass https://<hostname-of-jumptoweb>:2443;
                 proxy_set_header Host $http_host;
                 proxy_set_header X-Real-IP $remote_addr;
             }
         }
     }

4. Create docker-compose file /opt/intelligent-voice/docker-compose.nginx.yml which stores the container configuration (mapping of local directories and ports opening):

   version: '3'
   services:
     nginx:
       image: nginx
       container_name: nginx-proxy
       restart: unless-stopped
       ports:
         - "80:80"
         - "443:443"
       volumes:
         - "${DATA_DIRECTORY}/nginx/nginx.conf:/etc/nginx/nginx.conf"
         - "/opt/jumpto/ssl:/opt/jumpto/ssl:ro"

5. Create nginx service file /etc/systemd/system/nginx.service:

   [Unit]
   After                   = local-fs.target network.target docker.service
   Description             = nginx service

   [Service]
   User                    = root
   Type                    = oneshot
   RemainAfterExit         = yes
   WorkingDirectory        = /opt/intelligent-voice
   ExecStart               = /usr/bin/docker compose -f docker-compose.nginx.yml up -d
   ExecStop                = /usr/bin/docker compose -f docker-compose.nginx.yml down

   SyslogIdentifier        = nginx-proxy

   [Install]
   WantedBy=multi-user.target

6. Restart jumptoweb and start nginx service

   sudo systemctl restart jumptoweb
   sudo systemctl start nginx.service

7. Enable nginx service

   sudo systemctl enable nginx.service

Verification

You can now test that your trusted certificate is being served by both the IV API and the JumpToWeb site.

The addresses to test will be:

• https://<hostname>/vrxServlet/v2/version
  This should prompt you for API credentials then show you the IV version

• https://<hostname>/JumpToWeb/

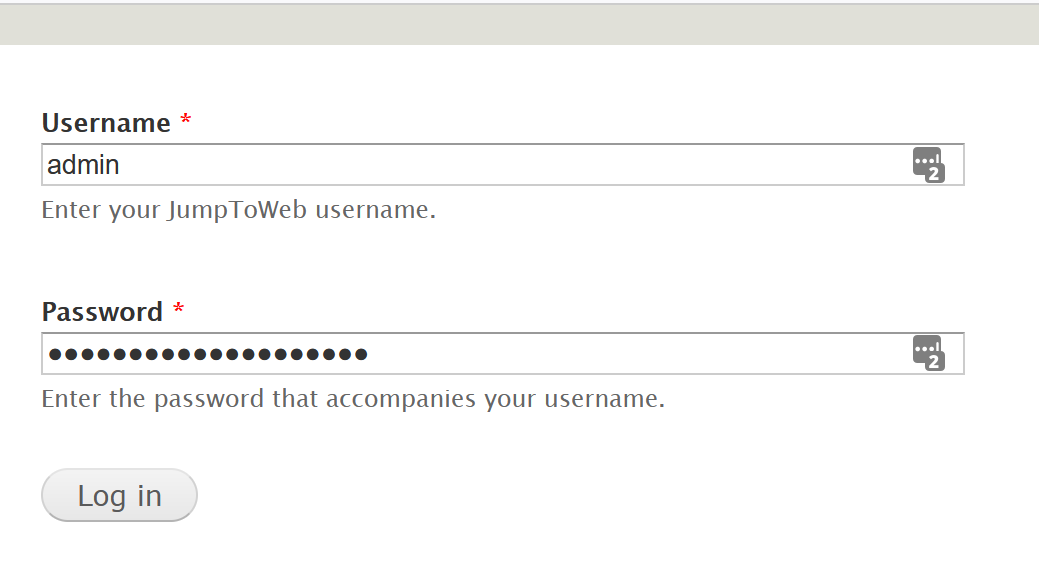

  This should show you a web page allowing you to log in to JumpToWeb like this:




Both these links should now be using your trusted certificate
